Streamlit UI Guide¶

bash streamlit run ui_premium.py The UI will open in your browser at http://localhost:8501

Overview¶

The NLP Cyber Incident Triage Laboratory is a comprehensive Streamlit web application providing an interactive dashboard for security incident analysis. It combines real-time classification, visual analytics, threat intelligence, and SOC automation in a modern, user-friendly interface.

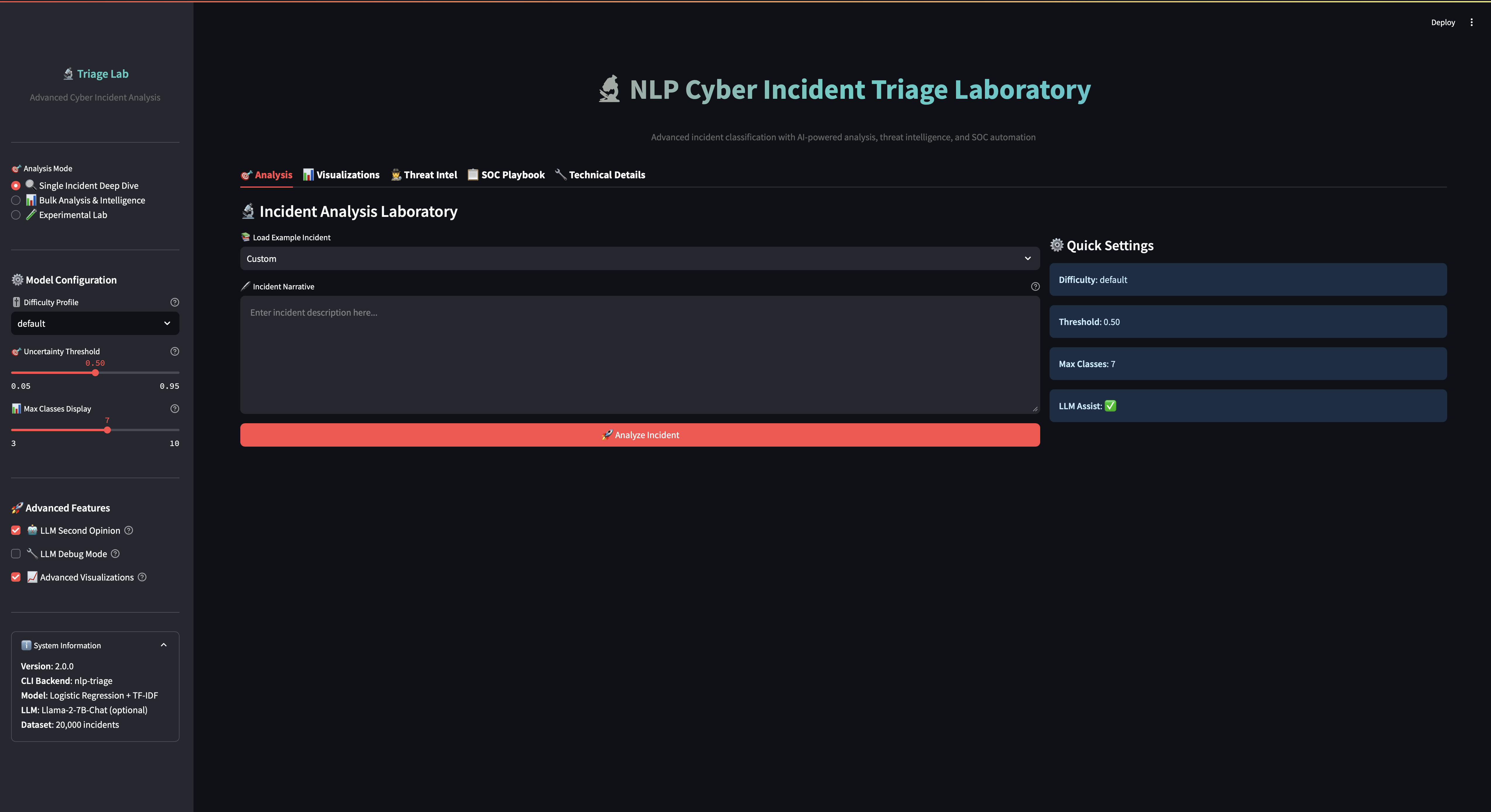

Main interface showing the analysis dashboard

🚀 Getting Started¶

Launch the Application¶

From the project root directory:

# Activate virtual environment
source .venv/bin/activate

# Launch UI
streamlit run ui_premium.py

The interface will automatically open in your default browser at http://localhost:8501.

First-Time Setup¶

Before using the UI, ensure you have:

1. ✅ Installed all dependencies: pip install -e .
2. ✅ Model files downloaded (run pytest tests/test_model.py -v to trigger automatic download)
3. ✅ (Optional) LLM model for second opinions: Download Llama-2-7B-Chat GGUF

📋 Interface Modes¶

The UI offers three primary analysis modes accessible from the sidebar:

🔍 Single Incident Analysis¶

Analyze individual security incidents with comprehensive intelligence.

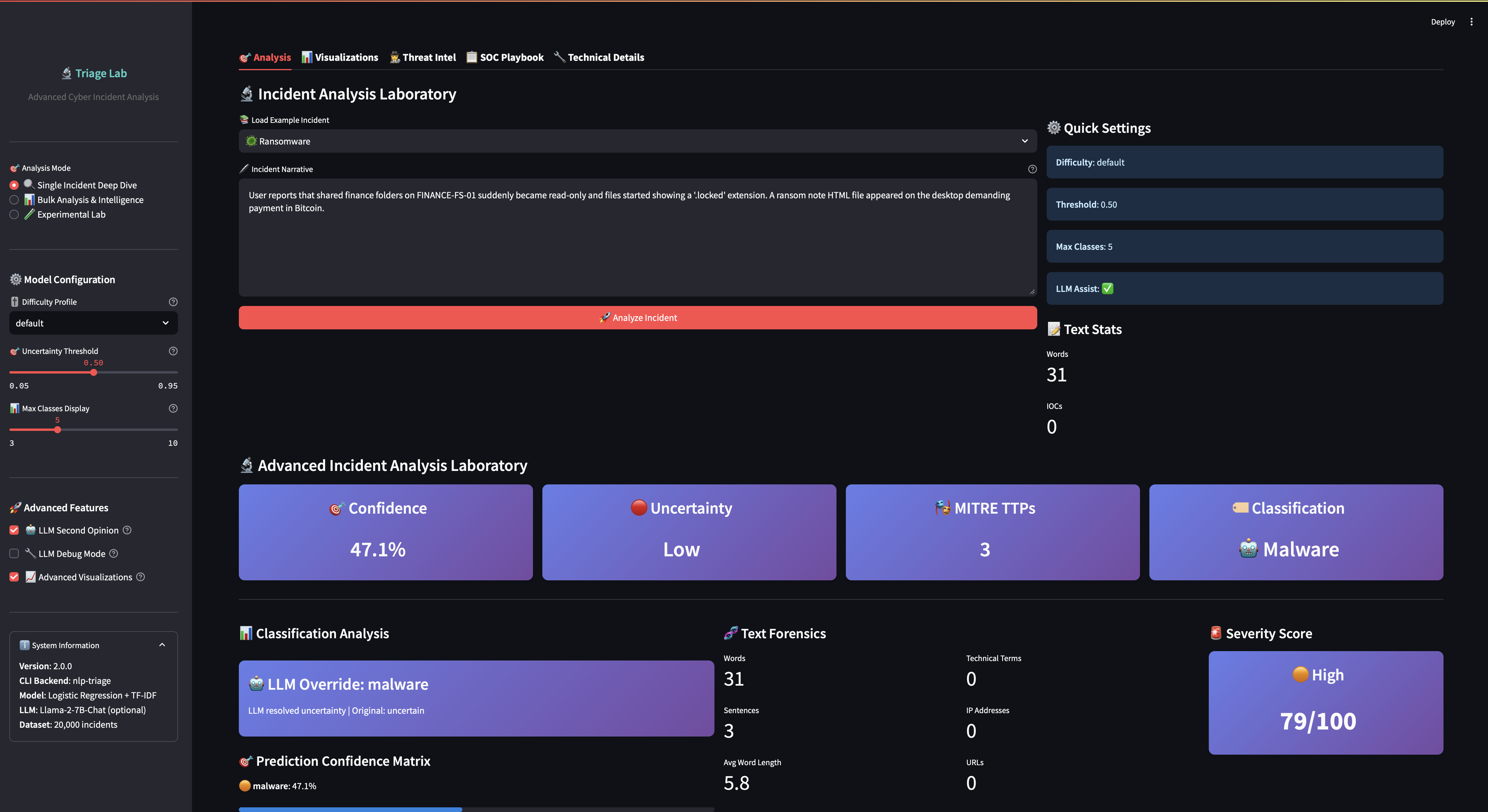

Single incident analysis with real-time classification

Features:

• Real-time incident classification
• Confidence scoring with visual gauge
• Probability distribution charts
• MITRE ATT&CK technique mapping
• Threat intelligence panel
• SOC playbook recommendations
• Risk radar visualization

Workflow:

1. Enter incident description in the text area
2. Configure analysis settings in sidebar (threshold, difficulty, LLM)
3. Click "🔍 Analyze Incident"
4. Explore results across five analysis tabs

📊 Bulk Analysis Intelligence Center¶

Process multiple incidents from uploaded files with advanced analytics.

Bulk processing dashboard with aggregate metrics

Features:

• CSV/TXT file upload support
• Batch processing with progress tracking
• Aggregate statistics and metrics
• LLM upgrade tracking (shows when AI changes classifications)
• Interactive filtering by label, confidence, uncertainty
• Export results as CSV/JSON
• Comprehensive threat intelligence briefs

Workflow:

1. Upload incidents file (CSV with description column or TXT with one incident per line)
2. Configure batch processing settings
3. Monitor real-time progress
4. Review aggregate analytics
5. Filter and export results

🧪 Experimental Lab¶

Advanced features for research and experimentation.

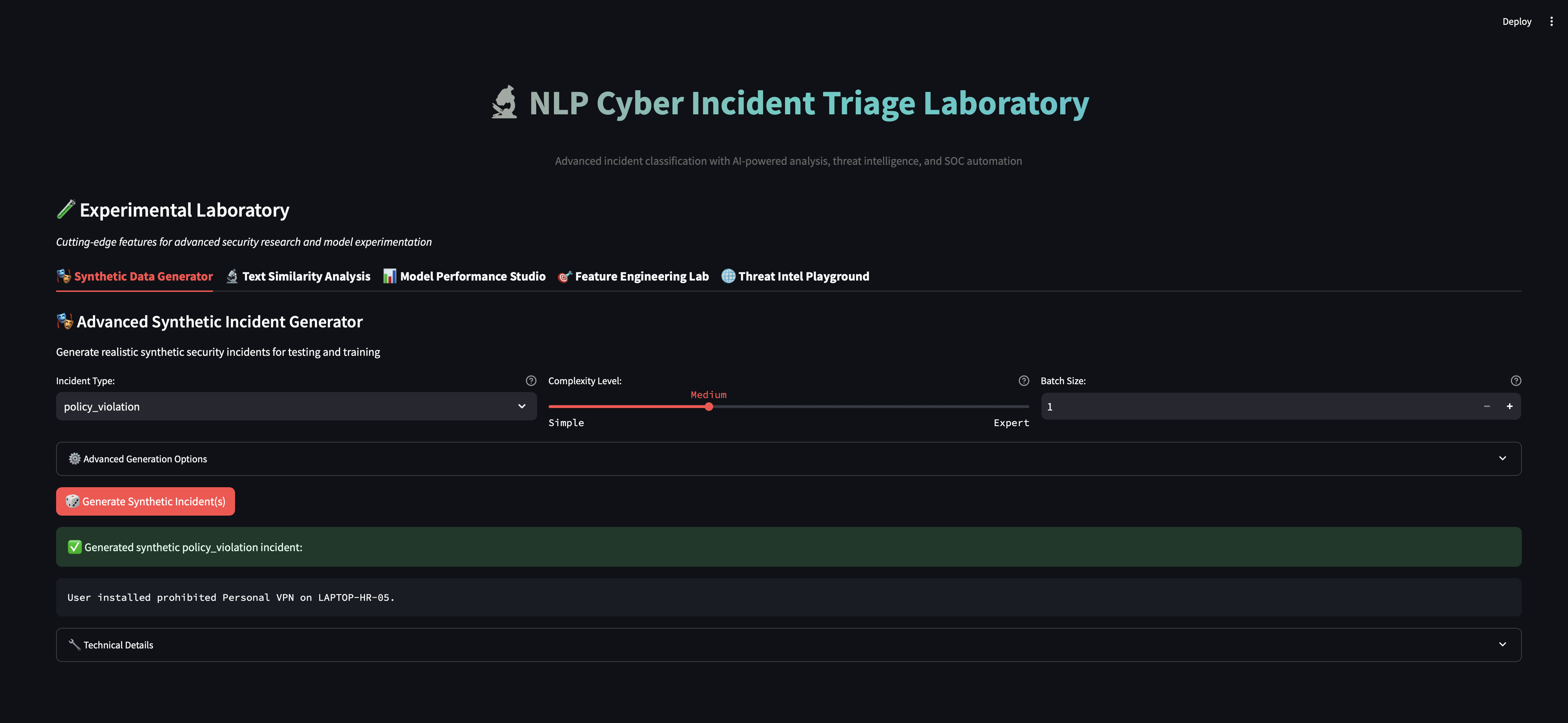

Experimental analysis tools

Features:

• Text similarity analysis
• Incident clustering
• Model performance comparison
• Synthetic data generation
• Advanced feature extraction
• IOC lookup and threat feeds

🎛️ Sidebar Configuration¶

The sidebar provides comprehensive control over analysis parameters:

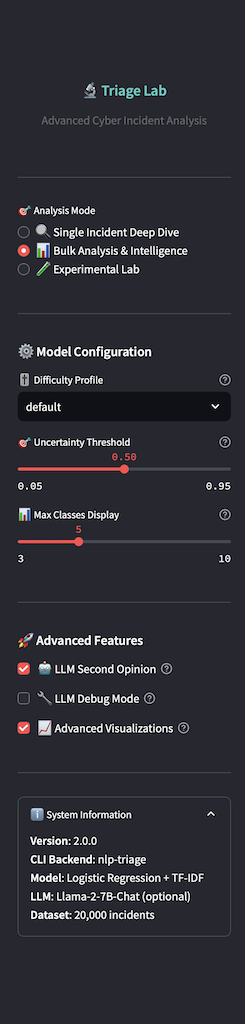

Configuration panel with all analysis settings

Analysis Settings¶

Difficulty Mode

• default - Standard thresholds (50% confidence)
• soc-medium - Moderate strictness (60% confidence)
• soc-hard - Maximum strictness (75% confidence)

Confidence Threshold

• Slider: 0.0 to 1.0
• Default: 0.50
• Controls when predictions are marked "uncertain"

Max Classes

• Number of top predictions to display
• Range: 1-7
• Useful for exploring runner-up classifications

LLM Configuration¶

Enable LLM Second Opinion

• Toggle AI-assisted classification
• Engages automatically for uncertain cases
• Provides alternative perspective with rationale

Debug Mode

• Shows detailed LLM prompts and responses
• Useful for troubleshooting
• Performance analysis

Visualization Options¶

Advanced Visualizations

• Enable enhanced charts and graphs
• Risk radar charts
• Confidence distributions
• MITRE technique heatmaps

📊 Analysis Tabs (Single Incident)¶

Tab 1: 🎯 Analysis¶

Core classification results with key metrics.

Main analysis results with confidence metrics

Displays:

• Final classification label
• Confidence score with gauge visualization
• Uncertainty level indicator
• Top-N probability distribution
• Class probability pie chart

Tab 2: 📊 Visualizations¶

Interactive charts and visual analytics.

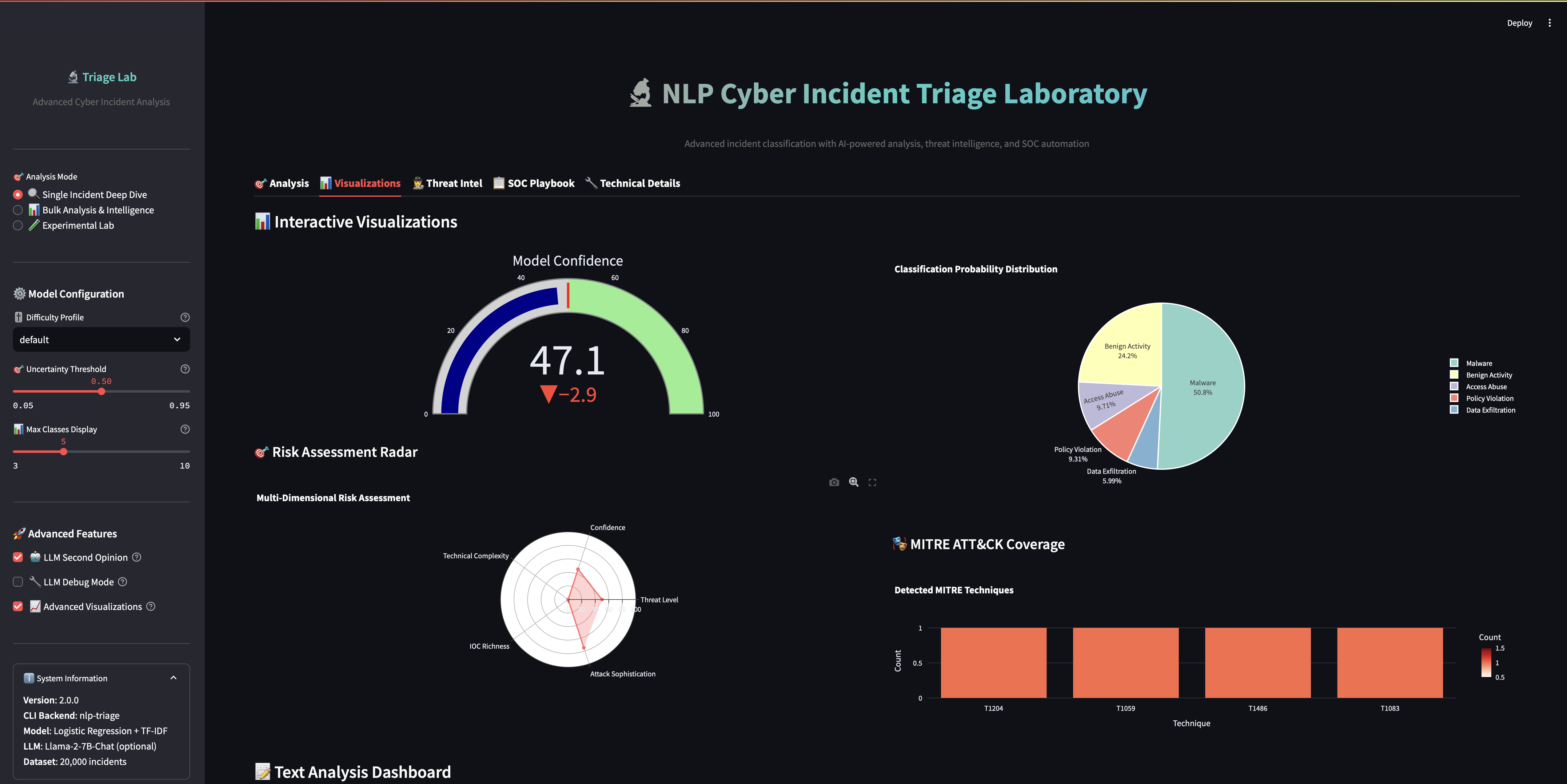

Visual analytics dashboard

Charts:

• Confidence gauge (speedometer-style)
• Probability distribution (pie chart)
• Risk radar (multi-dimensional assessment)
• Text complexity metrics

Tab 3: 🕵️ Threat Intel¶

Comprehensive threat intelligence analysis.

Threat intelligence panel with IOC extraction

Features:

• MITRE ATT&CK technique mapping
• IOC extraction (IPs, URLs, emails)
• Attack sophistication scoring
• Threat landscape context
• Related campaigns/TTPs

Tab 4: 📋 SOC Playbook¶

Context-aware incident response recommendations.

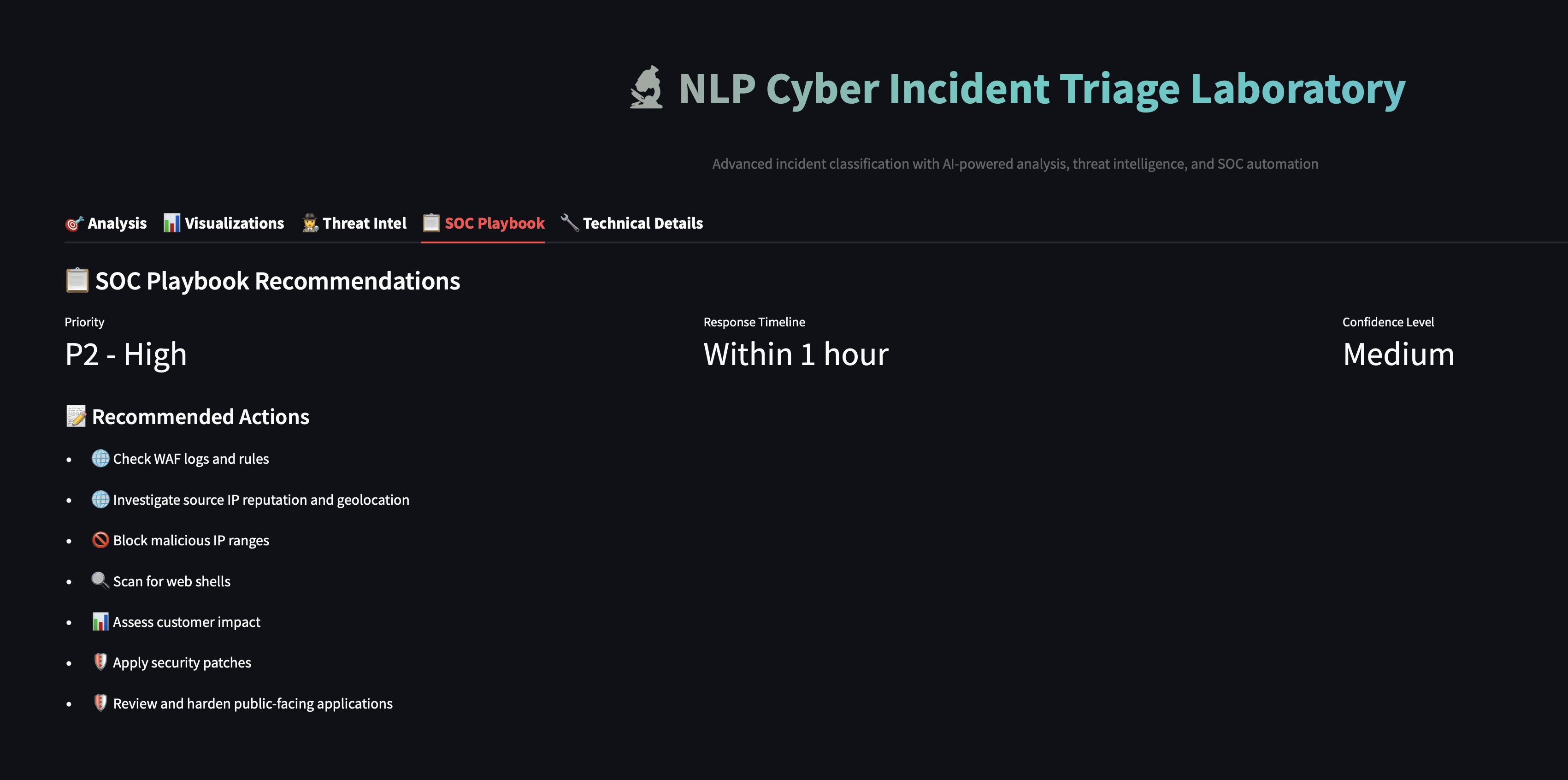

SOC playbook with actionable recommendations

Provides:

• Incident priority (P1-P5)
• Response timeline
• Step-by-step actions
• Context-specific guidance
• Escalation paths

Tab 5: 🔧 Technical Details¶

Raw data and technical information.

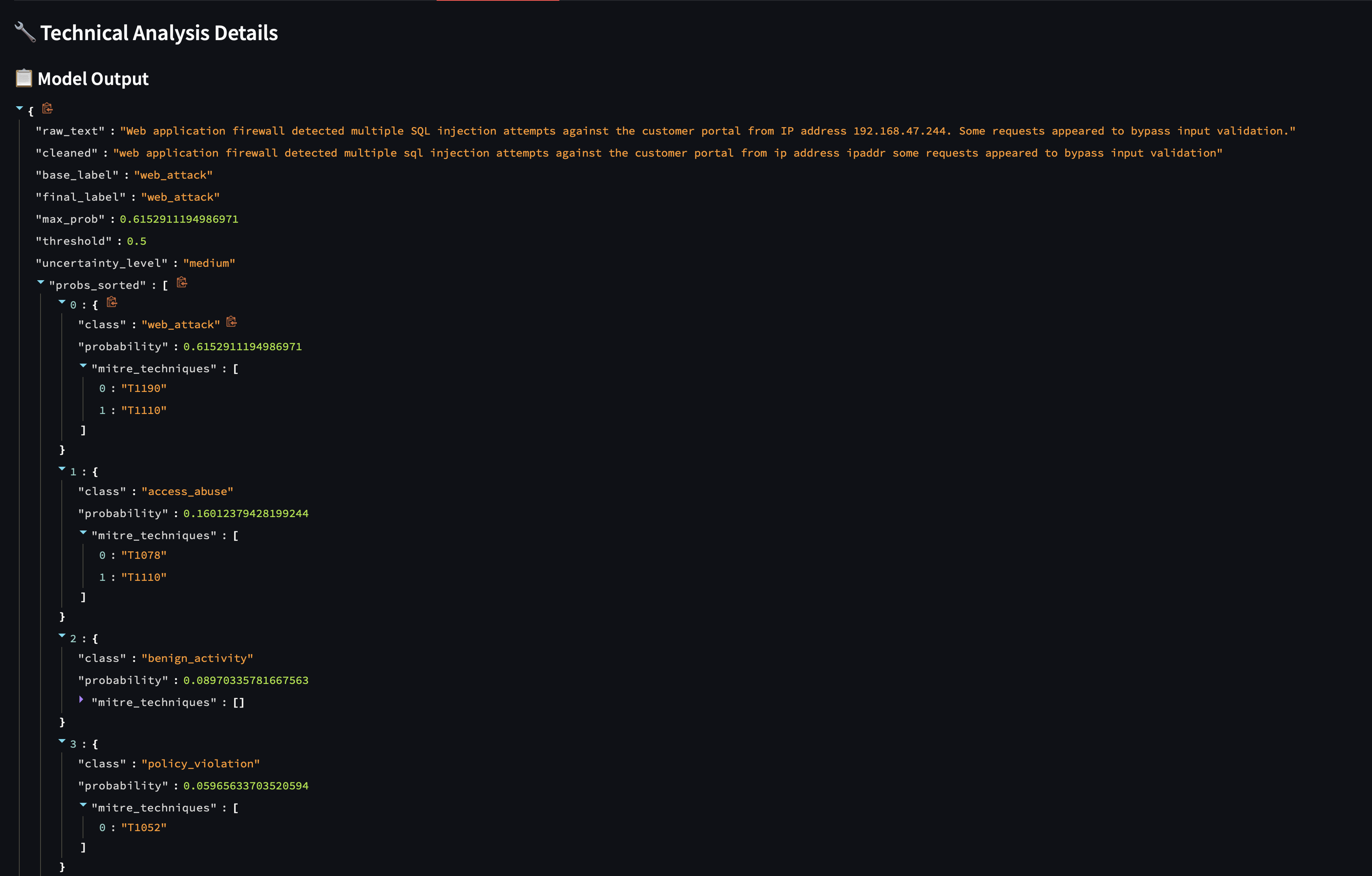

Technical debugging and raw JSON output

Includes:

• Full JSON response
• Text complexity analysis
• Model metadata
• Debug information
• LLM prompts/responses (if enabled)

📈 Bulk Analysis Features¶

Upload & Processing¶

Supported Formats:

CSV:

description
"User reported suspicious email with attachment"
"Multiple failed login attempts from Asia"
"Unusual outbound traffic to 192.168.1.100"

TXT (one incident per line):

User reported suspicious email with attachment
Multiple failed login attempts from Asia
Unusual outbound traffic to 192.168.1.100

Processing:

• Real-time progress bar
• Estimated time remaining
• Incident counter
• Error handling with retry logic

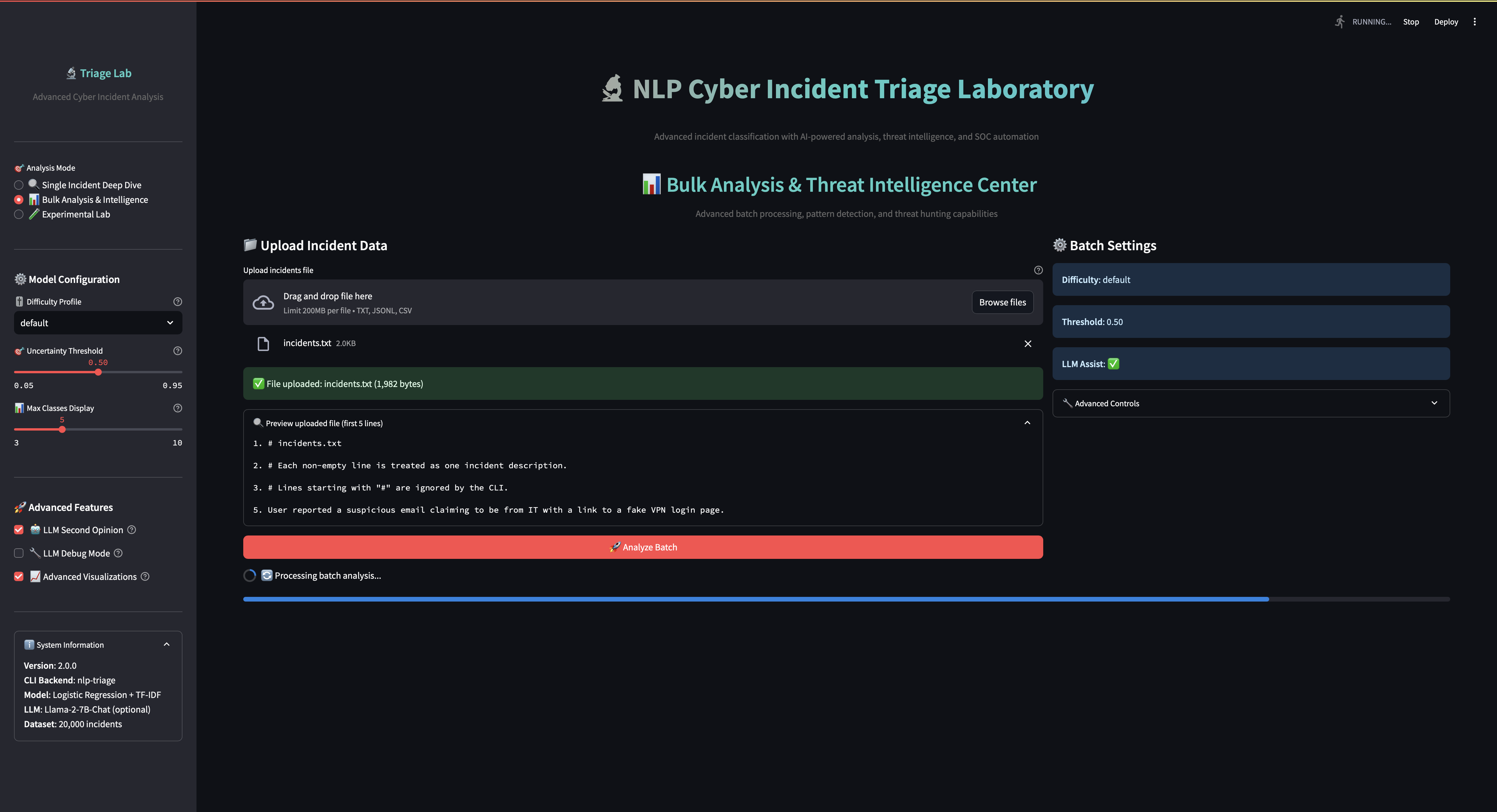

File upload and processing interface

Results Dashboard¶

After processing completes, view comprehensive analytics:

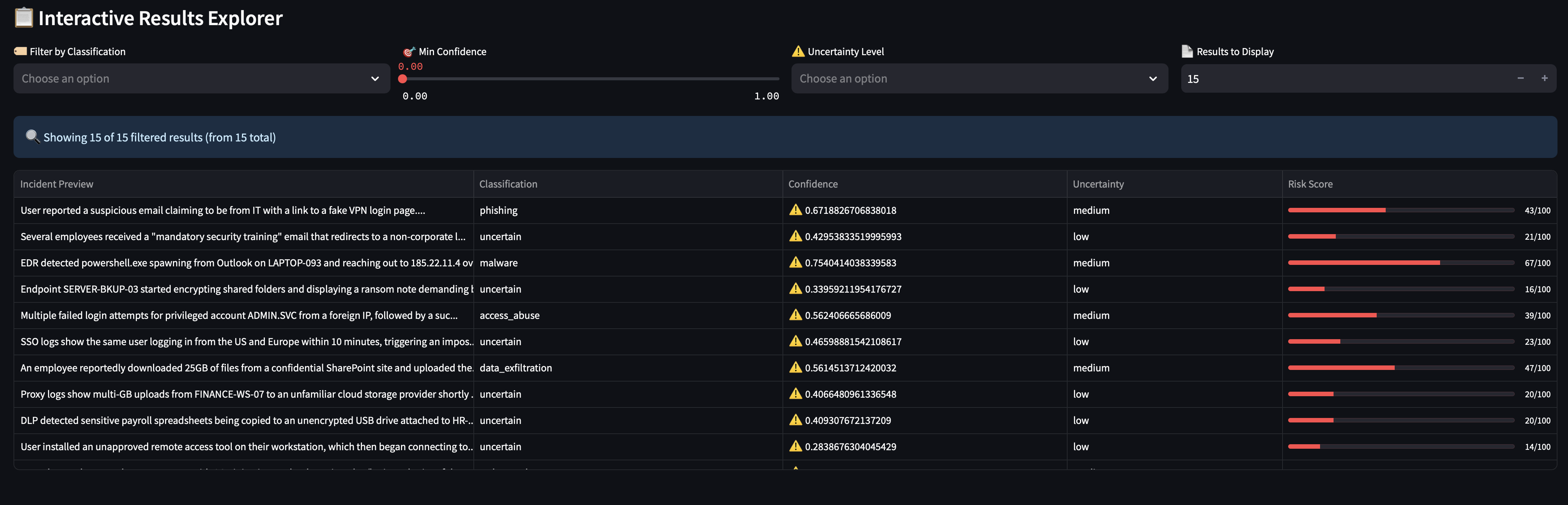

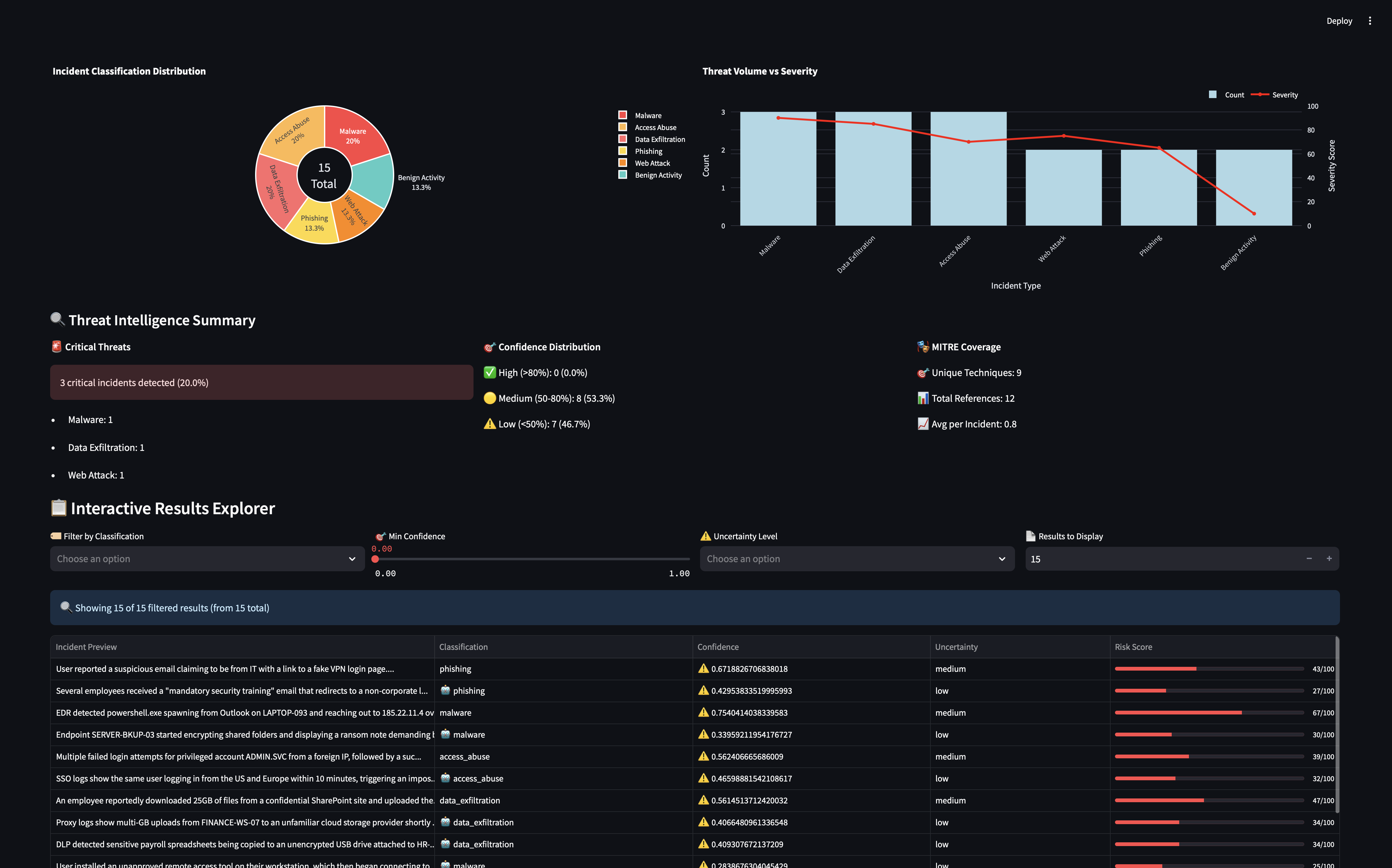

Aggregate results with filtering and export

Metrics:

• Total incidents processed
• Label distribution
• Average confidence
• LLM-resolved count (when second opinion used)
• Uncertain case count

Interactive Table:

• Sortable columns
• Filterable by label, confidence, uncertainty
• Expandable rows for full incident text
• Color-coded by risk level

Advanced Analytics¶

Access four analytics dashboards:

📈 Overview

• Label distribution pie chart
• Confidence histogram
• Timeline analysis
• MITRE technique frequency

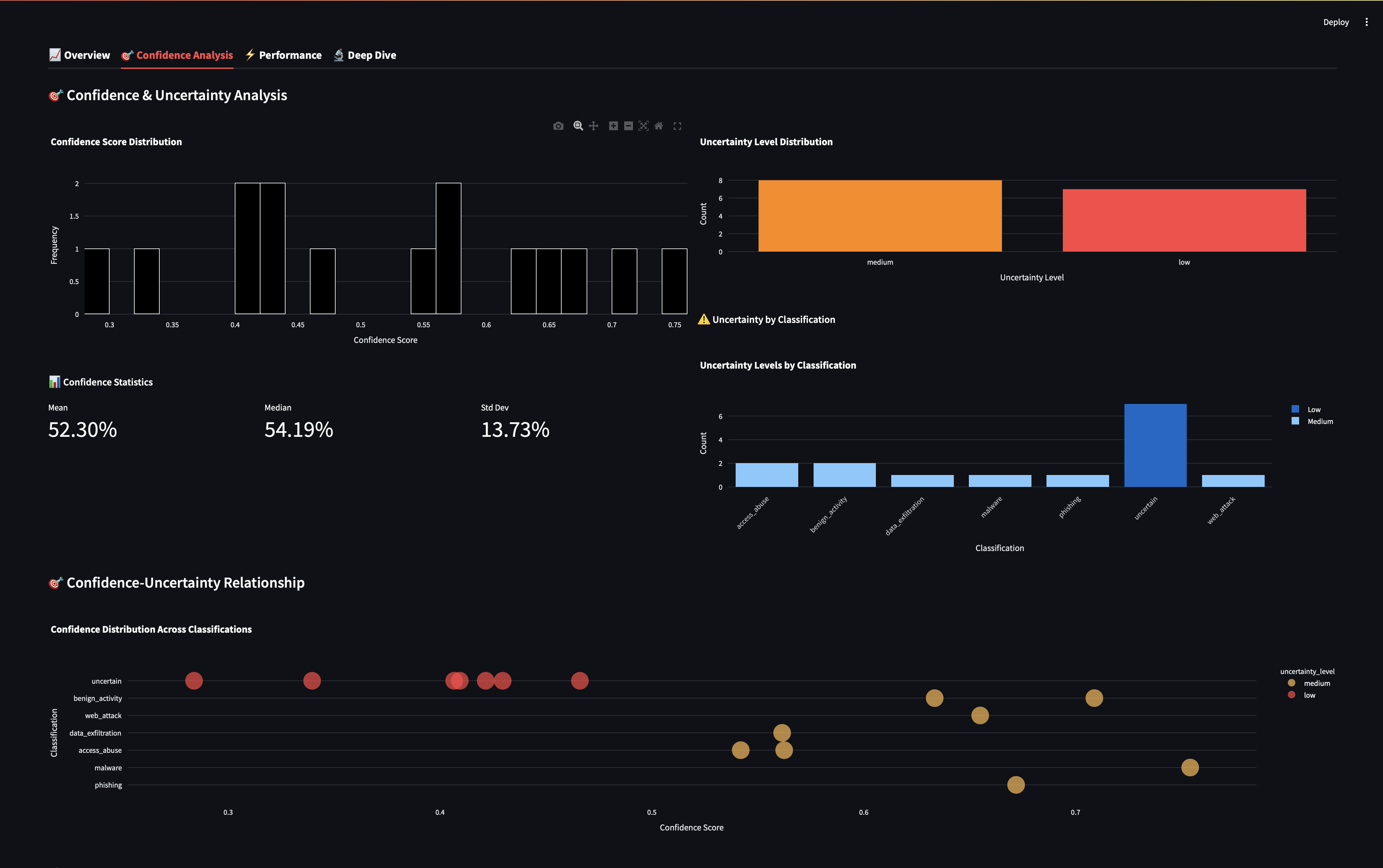

🎯 Confidence Analysis

• Confidence vs label scatter plot
• Uncertainty distribution
• High/low confidence breakdown
• Threshold impact analysis

⚡ Performance

• Processing speed metrics
• Model inference time
• LLM overhead analysis
• Resource utilization

🔬 Deep Dive

• Text complexity analysis
• N-gram frequency
• IOC extraction summary
• Correlation matrices

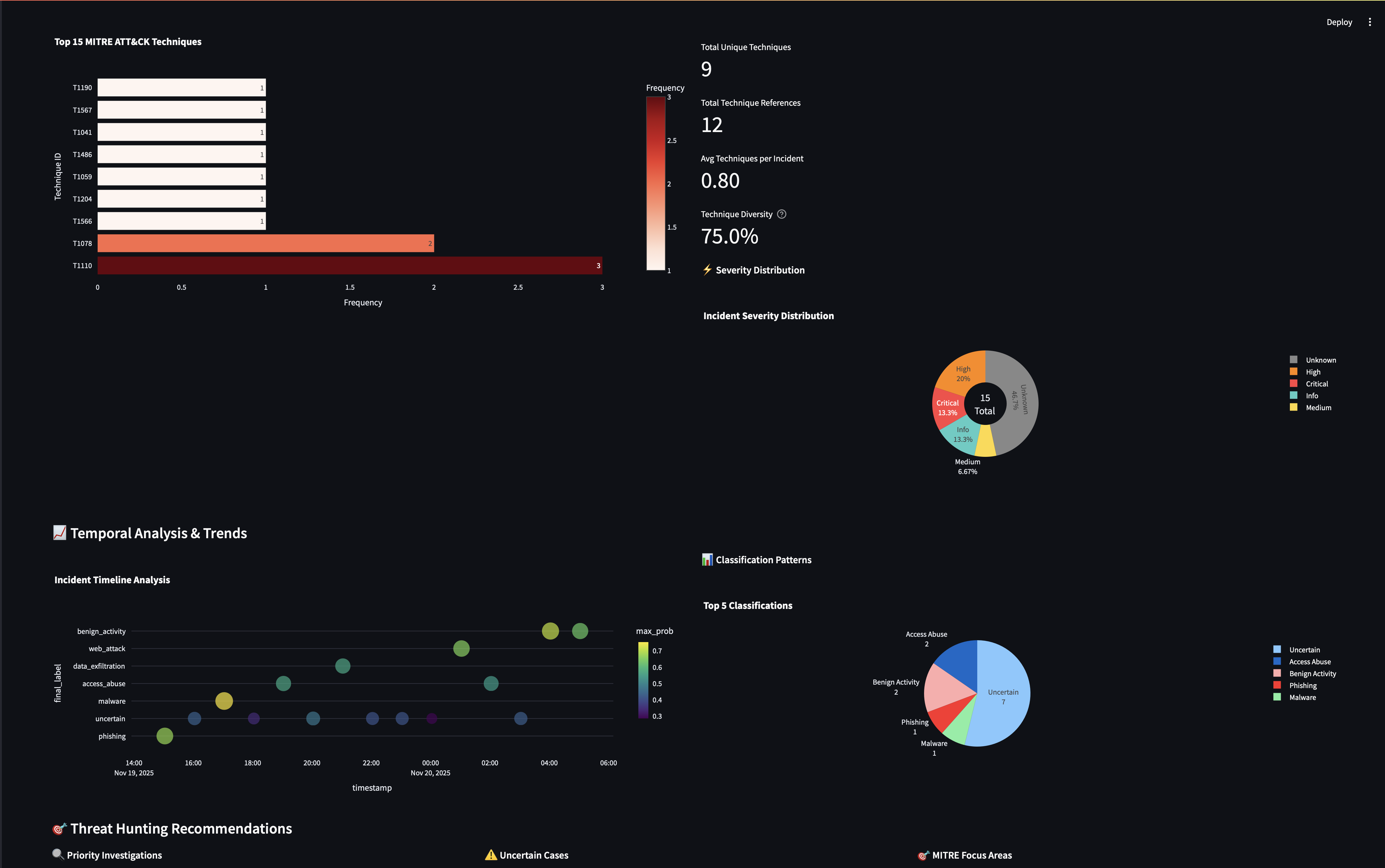

Advanced analytics with multiple visualization panels

Export Options¶

Download results in multiple formats:

CSV Export:

description,label,confidence,display_label,llm_override,mitre_techniques
"...",phishing,0.87,phishing,No,"T1566.001,T1204.002"

JSON Export:

{
  "description": "...",
  "label": "phishing",
  "confidence": 0.87,
  "display_label": "phishing",
  "llm_second_opinion": {...},
  "probabilities": {...},
  "mitre_techniques": ["T1566.001"]
}

Threat Intelligence Brief:

• Executive summary (Markdown/PDF)
• MITRE coverage report
• Critical incidents highlight
• Strategic recommendations

🧪 Experimental Lab Tools¶

Text Similarity Analysis¶

Compare incidents and find similar patterns.

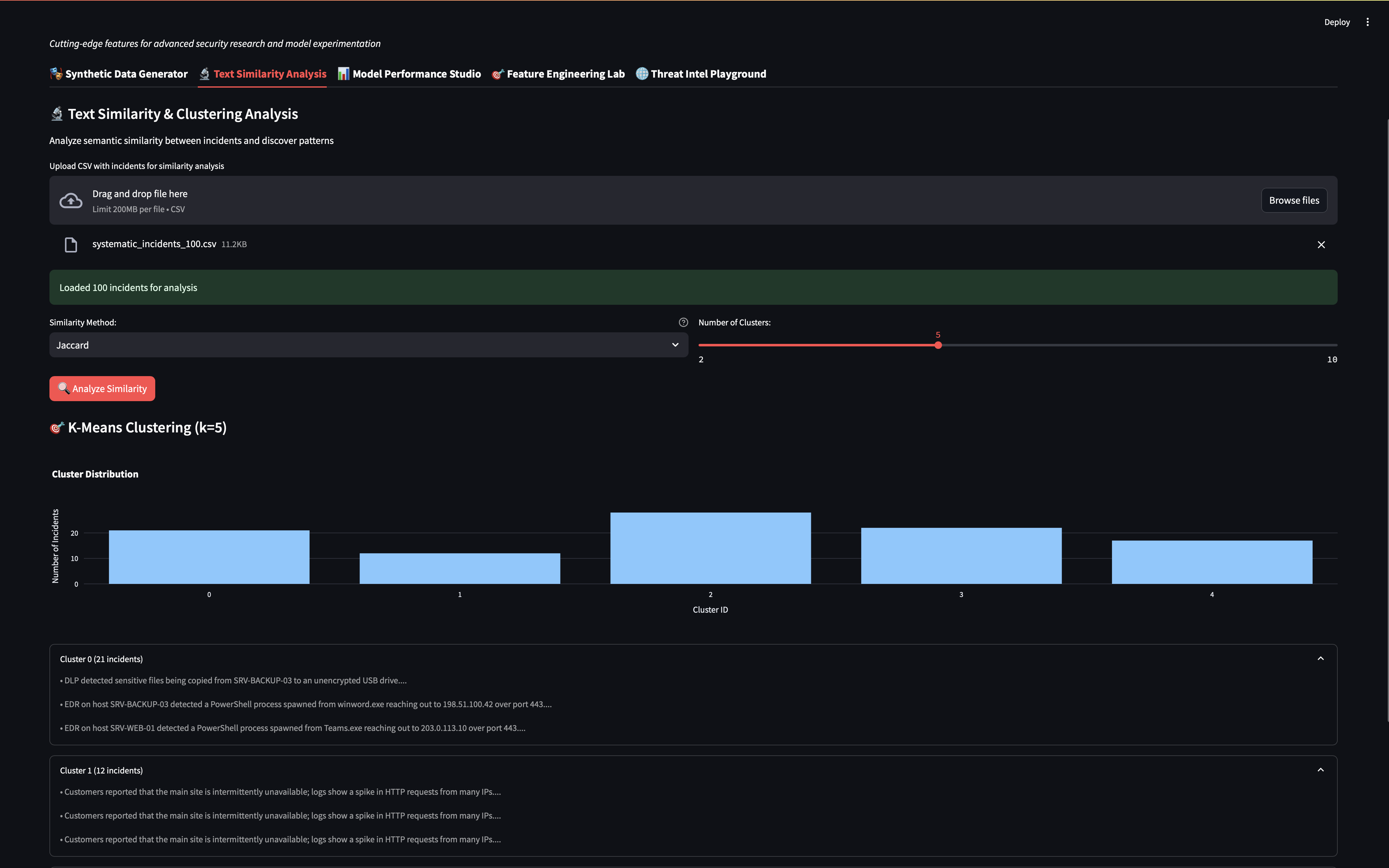

Text similarity clustering visualization

Methods:

• TF-IDF cosine similarity
• Semantic embeddings
• Clustering (K-means, DBSCAN)
• Similarity heatmaps

Model Comparison¶

Benchmark different classifiers.

Models:

• Logistic Regression (baseline)
• Random Forest
• Linear SVM
• Ensemble methods

Metrics:

• Accuracy comparison
• Confusion matrices
• Per-class performance
• Feature importance

Synthetic Data Generation¶

Create test datasets on-demand.

Parameters:

• Incident type
• Complexity level
• Batch size
• Include IOCs/MITRE/timestamps
• Export format

⚙️ Configuration¶

Environment Variables¶

The UI respects the same environment variables as the CLI:

# LLM Configuration
export TRIAGE_LLM_MODEL=/path/to/llama-2-7b-chat.Q5_K_S.gguf
export TRIAGE_LLM_DEBUG=1
export NLP_TRIAGE_LLM_TEMPERATURE=0.2
export NLP_TRIAGE_LLM_MAX_TOKENS=512

# Model Paths
export TRIAGE_LLM_CTX=4096

See Configuration Guide for complete settings.

Custom Styling¶

Modify ui_premium.py to customize the interface:

Color Schemes:

# Located at top of ui_premium.py
.metric-card {
    background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
    ...
}

Chart Types:

• Plotly graph configurations
• Streamlit theme settings
• Layout adjustments

💡 Tips & Best Practices¶

Performance Optimization¶

✅ Use baseline first - Test without LLM for 10-20x faster processing
✅ Batch processing - Process multiple incidents in bulk mode
✅ Adjust max classes - Limit to 3-5 for faster rendering
✅ Cache results - Export and reload rather than re-analyzing

Accuracy Improvements¶

✅ Tune thresholds - Lower (0.3-0.4) for coverage, higher (0.6-0.7) for precision
✅ Use difficulty modes - soc-hard for critical infrastructure
✅ Enable LLM selectively - Only for uncertain/high-stakes cases
✅ Review uncertain - Manual analysis for low-confidence predictions

Workflow Recommendations¶

✅ Single → Bulk - Test single incidents first, then scale to bulk
✅ Export everything - Save results for audit trails
✅ Use playbooks - Follow SOC recommendations systematically
✅ Monitor metrics - Track confidence trends over time

What to Avoid¶

❌ Don't trust blindly - Always review uncertain predictions
❌ Don't over-rely on LLM - It's decision support, not ground truth
❌ Don't ignore confidence - Low scores = unreliable classifications
❌ Don't skip validation - Verify results against ground truth when available

🔧 Troubleshooting¶

Common Issues¶

"Model files not found"

# Trigger automatic download
pytest tests/test_model.py -v

Slow LLM processing

• Use quantized models (Q5_K_S recommended)
• Enable GPU acceleration via llama-cpp-python
• Reduce context window: export TRIAGE_LLM_CTX=2048
• Lower temperature for faster generation

CSV upload fails

• Ensure description column exists
• Check UTF-8 encoding
• Remove empty rows
• Verify proper CSV delimiter (comma)

UI crashes or freezes

• Check terminal output for errors
• Verify sufficient RAM (8GB+ recommended)
• Close other applications
• Reduce LLM context window if OOM

Blank visualizations

• Enable "Advanced Visualizations" in sidebar
• Check browser console for JavaScript errors
• Refresh page
• Try different browser (Chrome/Firefox recommended)

Debug Mode¶

Enable detailed logging:

export TRIAGE_LLM_DEBUG=1
streamlit run ui_premium.py

Check terminal output for:

• LLM prompts and responses
• Model loading status
• Processing errors
• Performance metrics

🔗 Related Documentation¶

• CLI Usage - Command-line interface guide
• LLM Integration - Setting up local LLM models
• Configuration - Environment variables and settings
• API Reference - Programmatic access
• Architecture - System design and components

Need help? Open an issue on GitHub or check the FAQ.
